| Place of Origin: | China |
| Brand Name: | Global Tech |
| Certification: | ISO9001 |
| Model Number: | GAS100 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | To be negotiated. |
| Packaging Details: | Export Carton |
| Delivery Time: | 10 days after payment clear |
| Payment Terms: | LC/TT/WU |
| Product: | GNSS Anti-Jamming | Weight: | 225g |
|---|---|---|---|

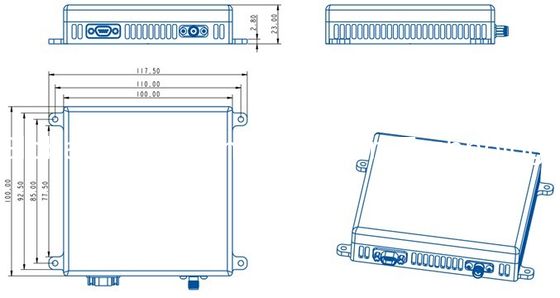

| Dimensions: | 117.5mm × 100mm × 23mm | Antenna Array: | 4 Array CRPA Antenna(4-channels) |
| RF Port: | 1*SMA Female | Serial Port: | Debugging Or NMEA0183 Protocol Output (optional) |
| Can Used For: | FPV/UAV/Robot | Anti-Jamming Performance: | ≥90 DB J/S |
| Customized Functions: | Customized For Flight Controller,For Example, V5+ | Simultaneous Active Bands: | GPS L1, GALILEO E1 And BEIDOU B1 |
| Operating Voltage: | 12V DC / 10W | Operating Temperature: | -40 °C To +70 °C |

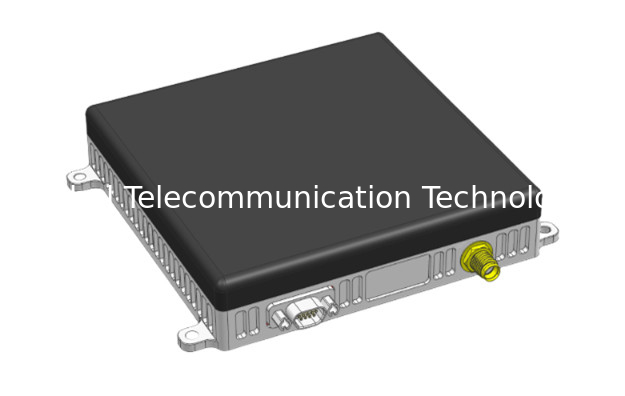

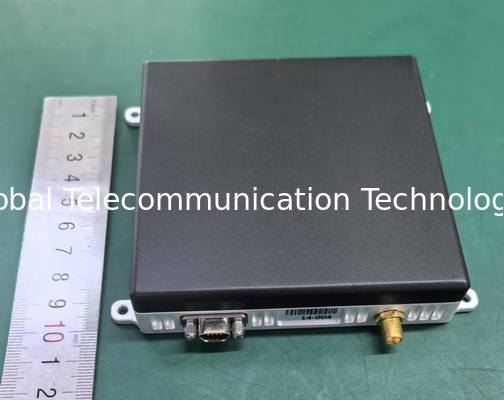

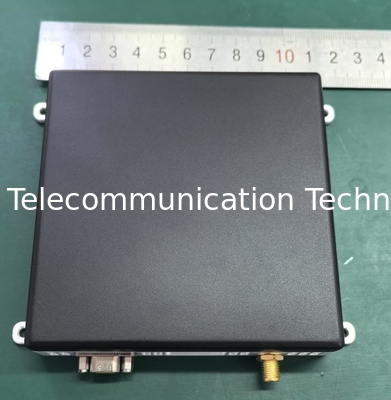

Global Tech GAS100 GNSS Navigation Anti-jam Antenna is a satellite navigation anti-jam antenna designed specifically for FPV platforms (GAS100 weigh 225g). It can provide protection for key satellite navigation frequencies. The GAS100 GNSS Navigation Anti-jam Antenna has a single built-in antenna to ensure the normal operation of the GNSS receiver in the presence of 3 broadband interference source.
The GAS100 GNSS Navigation Anti-jam Antenna can work with civil and military GNSS receivers for land, sea, air platforms (including UAV systems) and fixed installations.
Note:
1). GSA100 is 4 Array CRPA Antenna, 4-channels, Our company also has 2-channel, 8-channel and 11-channel Anti-Jamming terminals to choose from. If you need it, please contact us.
2). If you want GAS series products to connect to your flight controller via serial port output NMEA0183 protocol messages, please contact us.
