| Place of Origin: | China |
| Brand Name: | Global Tech |
| Certification: | ISO9001 |
| Model Number: | GTRV-M7-VB-GX |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | To be negotiated. |
| Packaging Details: | Export Carton |
| Delivery Time: | 7 days after payment clear |
| Payment Terms: | LC/TT/WU |
| Product: | Radio Unit | Temperature: | Max 60 Degree |
|---|---|---|---|
| Emergency: | Mobile Truck |
Overview

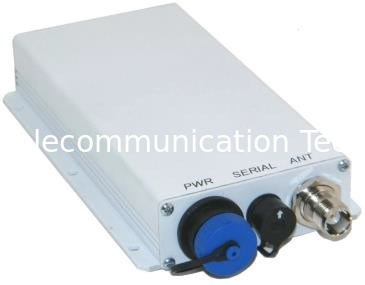

The M7 RF data radio is a rugged high-performance, high-speed narrow-band data modem. It contains a receiver, a transmitter, and modem, creating an easy-to-use transparent data radio link. The M7’s user interface is asynchronous RS-232 data into and out of the M7 (CMOS level optional). Modem operation is virtually transparent to the user and the configuration of the modem is via the user serial port.
Unlike any other radio modem on the market, the M7 may be operated in either a “Packetized Mode” or a “Streaming Real-Time Mode”. There are advantages to each approach, and your choice depends upon how your system operates. With Global Tech own property right second developer guide and config file, end user can easily make own confidential config and development to our other GT production.
For privacy and network versatility, the M7 incorporates a 16 bit identification code. Its protocol also uses a 16bit CRC to guarantee the integrity of the data. Perfect for SCADA and telemetry applications, the M7 can be used for simple point-to-point data communication applications, or for more sophisticated point-to-multipoint, peer-to-peer, or mesh networks.
Although the M7 is the easiest to use modem on the market, its re-programmability makes it extremely versatile. Most parameters within the modem may be re-configured to optimize it for specialized operations, extended range, or higher data throughput.
Feature
All measurements made per TIA-603-B
Frequency: Model GTRV-MV-VB-GX-VA (Non-US Frequency; except military) ............ ................ 136 - 155MHz
Model GTRV- MV-VB-GX-B ..................................................... .................. . .... .... .... ............ 150 - 174MHz Model GTRV-MV-VB-GX-UA (Non-US Frequency) ........................................................403 – 434MHz
Model GTRV-MV-VB-GX-UB (Non-US Frequency) ........................................................419 – 440MHz
Model GTRV-MV-VB-GX-UC..........................................................................................450 – 480MHz Model GTRV-MV-VB-GX-UD (Non-US Frequency) ............................ ..........................470 – 512MHz
Size..................................................................................................... 4.60” X 2.60” X .956 (11.7cm X 6.6cm X 2.43cm)
Weight ...........................................................................................................................6 ounces (0.17kg)
DC input voltage ......................................................................................................................................10-16V DC
Internal fuse ............................3A mini blade. Littlefuse part number 0297003 or Global tech part, number 1X726-3 FCC ID Model GTRV-MV-VB-GX-UC-N .................................................................. SRS-GTRV-MV-VB-GX-UC
Model GTRV-MV-VB-GX-VB .......................................................................SRS-M7-VB
All other models for export or OEM use
