| Place of Origin: | China |
| Brand Name: | Global Tech |
| Certification: | ISO9001 |
| Model Number: | Batman series products |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | To be negotiated. |
| Packaging Details: | Export Carton |
| Delivery Time: | 20 days after payment clear |
| Payment Terms: | LC/TT/WU |
| Detection Distance: | >5km | Interference Distance: | >5km |
|---|---|---|---|
| GPS Spoofing Distance: | >5km | 3D Active Radar: | Detects Azimuth, Distance And Altitude |
| Full Frequency Detection Radar: | 300MHz~6GHz | Full Frequency Jammer: | 300MHz~6GHz |
| RF Targets Tracked: | ≥32 At The Same Time | 3D Active Radar Targets Tracked: | ≥200 At The Same Time |
1. Application scenarios

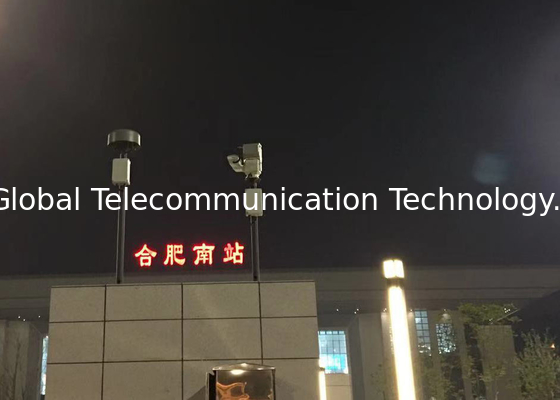

In the government and industry markets, we provide a complete set of systems and solutions for customers such as firefighting dep., public security dep, armed police, earthquake rescue team, judicial dep,petrochemical enterprise, airport and nuclear power plant etc.
In the military defense industry market, relying on core technology, the company commits to providing advanced products, systems and solutions for battelled joint search and rescue, special operations, battlefield reconnaissance, and electronic countermeasures.
2. Equipment List
| item | Name | Part Number | Picture | Tactical performance |
|---|---|---|---|---|
| 1 | 3D Active radar | Batman AR3500 | |
X band; |
| 2 | 3D Active radar | Batman AR5800 | |
X band; 0°~360°scanning; Detection Range:＞8km; At least 200 targets can be tracked at the same time. |
| 3 | Full frequency spectrum detection radar | Batman PR5000-F | |
Full frequency detection； Omnidirectional 360°; Detection Radius≥5km At least 32 targets can be tracked at the same time. |
| 4 | Spoofing Active Defense System | Batman SA3000 | |
Omnidirectional 360°; Spoofing Range 500m~3km software adjustable; |
| 5 | Full frequency Directional jammer | Batman DJ3000-F | |
Full frequency jammer, 0°~360°scanning,Can automatically track drones; Jamming Range ≥3km; |
| 6 | Full frequency jammer and spoofing defense system. Full range Jammer+fixed spoofing | Batman FSA5000 | |
Full frequency jammer, 0°~360°scanning,Can automatically track drones; Jamming Range ≥3km; Spoofing Maximum Range ≥5km, software adjustable; |
| 7 | Full-frequency omnidirectional jammer | Batman DJ360H | |
Full frequency jammer; Omnidirectional 360°; Jamming Range ≥3km; |
| 8 | Handheld jammer | Batman HJ1000 | |
Detection frequency band; 2.4GHz, 5.8GHz Jamming frequency band: The default frequency bands cover 900MHz, 1.5GHz, 2.4, and 5.8GHz Effective detection distance: ≥1.5km Effective interference distance: ≥1km Full band interference optional. |
| 9 | Anti-UAV PTZ camerar | Batman CA2000-UAV | |
Visible light detection ≥3000m Automatic tracking ≥2000m Laser detection ≥1000m |
| 10 | Military grade AI tracking EOD camera | Eagle M2 | |
Detection range of drone: 5km (EO); Drone tracking range: 3km (EO); Detection range of drone: 3.5km (IO); Drone tracking range: 2.3km (IO); Automatic tracking: Auto tracking, Built-in tracking module; Laser Ranging: 10km; Pan Tilt Zoom: Horizontal 360° continuous rotation, pitching: -45°~+90°; |
| 11 | Management software | UA-V8000 | |
It is able to manage and control the RF scanner, E/O tracker and jammer configuration. Available for the whole system linkage to achieve automatical detection&alarm, photoelectric tracking and jamming. Multiple target detection and autumatical/manually target tracking is available in the system software. On-line electronic map to display the intrusive UAVs' location, model information on the real time map. |
| 12 |
Industrial PC/Ground station |
GTS-UAV4T |
|
14-inch FHD 16:9, 1920x1080, 700/1000 nits Intel® Core™ i5-1135G7/i7-1165G7 Windows 10, Built-in UA-V8000 management software system RAM 16G, ROM 256GB/512GB/1TB WIFI6,GPS,Bluetooth,Fingerprint,Battery(6300mAh+1750mAh) HDMI x 1, POGO 5pin x 1, USB 2.0 Type-A x 1, USB 3.0 Type-A x 3, SIM Card x 1, SD Card x 1, DB9 RS232 × 1, RJ45 × 2, Φ3.5mm standard earphone jack x 1, DC 19V 3.42A x 1, Anti-theft lock hole *1,Heat dissipation air outlet (right) *1, Left docking station, optional custom adapter PCIE X4 slot or HDD *1, |

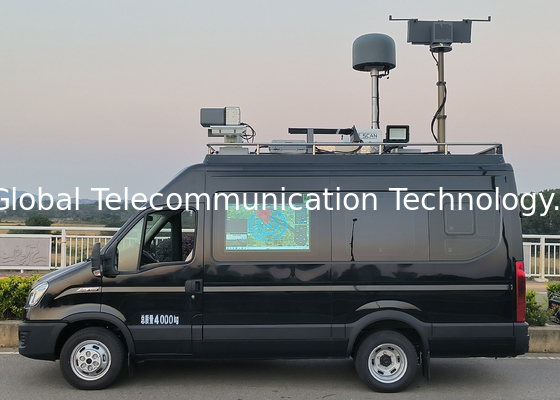

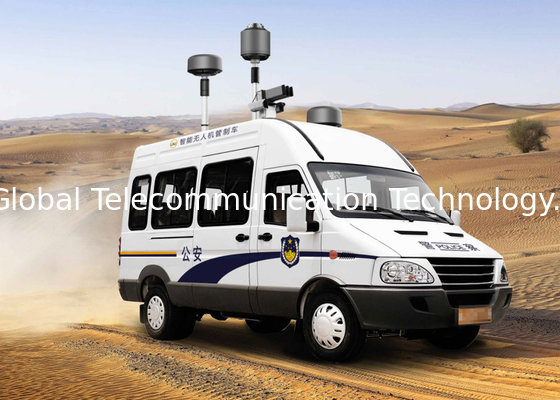

| 13 | Vehicle control system | Customize (optional) |
|
Based on the principle of reliability and meeting actual combat needs, we provide vehicle control system design, software and hardware integration and system joint debugging. The main hardware equipment of the system consists of cabinets, monitors, consoles, keyboards, mice, servers, switches, switches, sockets, power supplies It consists of conversion modules, UPS and other equipment. The system can record and playback alarm information to help collect intrusion evidence collection, including the number of intrusion targets, invasion time, intruder position, flight trajectory, etc. It also include all installation accessories and cable for canter truck of our AUDS system. |
| 14 | Vehicle Power System | Gasoline Generator 7.5kw (optional) |
|
Gasoline inverter generator Rated voltage: 230V Rated power: 6.8KW Maximum power: 7.5KW DC voltage: 12V/8.3A Start mode: electric start Fuel tank volume: 23L Running time: 5.5h at rated power, 8h at 50% rated power Noise: 75dB (7m) Size: 695mm*535mm*590mm Weight: 73kg |
