    Product Details:

    Place of Origin: China
    Brand Name: Global Tech
    Certification: ISO9001
    Model Number: GTM-HYIPC301

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: To be negotiated.
    Packaging Details: Export Carton
    Delivery Time: 7 days after payment clear
    Payment Terms: LC/TT/WU
    Contact Now
    Detailed Product Description
    Features: Fully Enclosed Fanless CPU: J1900/J4125/I5-4300U/I5-7200U/I5-10210U
    Memory: 2G/4G/8G/16G Storage: 32G/64G/128G/256G (ssd) Or Add 2.5 HD
    Network: 2*Gigabit Network Port Wireless: 4G Or Wifi



    1.Product features

    • Fully enclosed fanless design
    • Supports multiple CPU options
    • Support VGA+ HDMI dual display interface
    • Mini-PCIe slot inside for expanding blocks such as WIFI or 4G
    • Compact size and versatile



                MINI PC、Fanless Industrial PC, GTM-HYIPC301

    2. Product parameter



    Model GTM-HYIPC301
    Overall size 236*213*54.5mm
    Features Fully enclosed fanless
    Appearance All aluminum body/dark gray
    CPU Intel® Celeron® Processor J1900
      (2M cache, up to 2.42 GHz)
      Intel® Core™ i5-4300U (quad-generation i5)
      (3M cache, up to 2.90 GHz)
      Intel® Core™ i5-7200U (7th Generation i5)
      (3M cache, up to 3.10 GHz)
    Memory 2G/4G/8G
    Storage 32G/64G/128G/256G (MSATA solid state drive)
    Network Realtek RTL8111F Gigabit Network Card
    Operating System Win 7 (default) / Win10 / Linux
    Interface 2*Network port / 6*Serial port / 6*USB / 1*HDMI / 1*VGA /
      1*LINE OUT / 1*MIC /
    COM The default serial port is RS232, two of the serial ports can be changed to RS485
    WIFI (optional) Support 2.4G & 5G WiFi,Support Wi-Fi 802.11b/g/n protocol
    4G (optional) V2.1+EDR/Bluetooth 3.0/3.0+HS/4.0
    LTE-TDD/LTE-FDD/TD-SCDMA/EDGE/GPRS/GSM.
      GPS Global Positioning
    Power input Standard 12V DC connector, 5.5mm outer diameter, 2.5mm inner diameter
    Power adapter Standard AC-DC 12V@3A, 36W
    Operating temperature 0 to 50°C
    Storage temperature -10 to 60°C
    Working humidity 5%~95% relative humidity, non-condensing

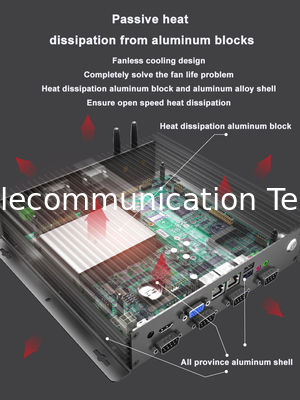

    Heat dissipation method Fanless cooling design, passive heat dissipation
    Power on method Switch start, support call self-start
    Watchdog Support hardware reset function (256 levels, 0~255 seconds)
    Installation method Recessed, wall-mounted, desktop
    Packing list 1*Complete machine / 1*12V3A power adapter / 1*National standard power cable / 4*Foot pad / 1 package of screws

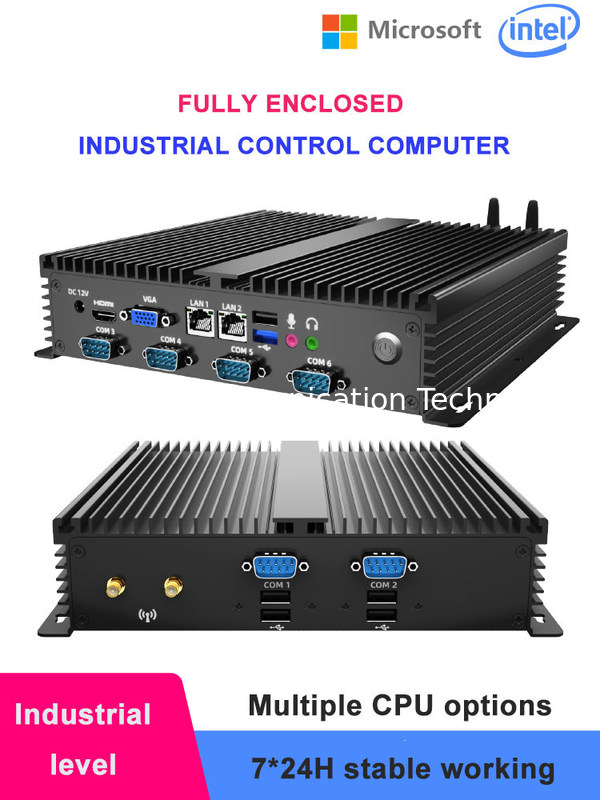

    3.Product Interface

    MINI PC、Fanless Industrial PC, GTM-HYIPC301
