| Place of Origin: | China |
| Brand Name: | Global Tech |
| Certification: | ISO9001 |
| Model Number: | GTM-HYIPC201 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | To be negotiated. |
| Packaging Details: | Export Carton |
| Delivery Time: | 7 days after payment clear |
| Payment Terms: | LC/TT/WU |
| CPU: | N2840/J1900/J4125 | Memory: | 2G/4G/8G |
|---|---|---|---|
| Storage: | SSD:32G/64G/128G/256G/512G , Additional 2.5" Mechanical Hard Drive |
1. Product features
2. Product parameters
Overall Parameters
| Model | GTM-HYIPC201 |

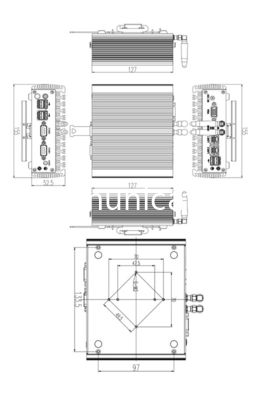

| Overall size | 155*127*52.5mm |
| Features | Fully enclosed fanless |
| Appearance | All aluminum body/black |
| Configuration parameters | |
| CPU supportable |
Intel® Celeron® Processor J1900 (Quad-core quad-threaded / 2.00Ghz / 2.42 GHz RWD) Intel® Celeron® Processor J4125 (Quad-core and quad-threaded / 2.00Ghz / 2.70GHz RWD) Intel® Core™ i5-4300U (Quad Generation) Processor (Dual-core quad-threaded / main frequency 1.90Ghz / RWD 2.90GHz) |
| Memory | 2G/4G/8G |
| Storage | 32G/64G/128G/256G/512G Solid State Drive |
| Support additional 2.5" mechanical hard drive | |
| Network Operating System | Realtek RTL8111F Gigabit Network Card |
| Operating System | Win 7/Win10/Linux |
| Interface (optional) | 2*Network port / 2*Serial port / 6*USB / |
| 1*HDMI / 1*VGA / 1*Audio interface/ WIFI & 4G (optional) | |
| Network | Default serial port is RS232, can be changed to RS485 |
| Power input | Standard 12V DC connector, 5.5mm outer diameter, 2.5mm inner diameter |
| Power adapter | AC-DC 12V power adapter as standard |
| Environmental parameters | |
| Operating temperature | -10 to 60°C |
| Storage temperature | -20 to 70°C |
| Working humidity | 5%～95% relative humidity, non-condensing |
| Other parameters | |
| Heat dissipation method | Fanless cooling design, passive heat dissipation |
| Power on method | Switch start, support call self-start |
| Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |
| Installation method | Rail Mount / Wall Mount / Desktop Mount / VESA Mount |
3.product interface
4.Serial port definition
| Serial number | Definition | Serial number | Definition |
| 1 | DCD | 2 | RXD |
| 3 | TXD | 4 | DTR |
| 5 | GND | 6 | DSR |
| 7 | RTS | 8 | CTS |
| 9 | RI | 10 | NC |
| Serial number | Definition | Serial number | Definition |
| 1 | TXD+(A)/RXD+ | 2 | TXD(B)/RXD- |
| 3 | NC | 4 | NC |
| 5 | GND | 6 | NC |
| 7 | NC | 8 | NC |
| 9 | NC | 10 | NC |
