    Product Details:

    Place of Origin: china
    Brand Name: Global Tech
    Certification: iso
    Model Number: Eagle102Y

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: To be negotiated.
    Packaging Details: Export wooden box
    Delivery Time: To be negotiated.
    Payment Terms: LC/TT/WU
    Supply Ability: 100
    Contact Now
    Detailed Product Description
    Laser Range Finder Range: 20km Thermal Camera1: Human Detection 16.4km, Vehicle Detection 21km
    Thermal Camera2: Human Recognition 7.7km, Vehicle Recognition 13.5km Auto Tracking Distance: ≥13km (target Size 2.3m X 2.3m Vehicle)
    Gyro Stabilized (option): Gyro Precision: 1mrad Protection Grade: IP66

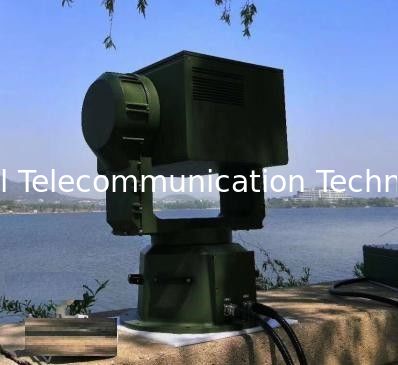

    Eagle102Y Eletronic Optical Device, EOD with Laser Range Finder can be used for Frontier & coast Defense, warship, Military/Police Oilfields, Railways, Airports, Harbors, Rivers, Fireproofing Large areas, real-time Monitoring. The laser ranger finder decection distance is 20KM. It equipped with cooled thermal which enable to scout object over 20KM and show trajectory in NMS.  The equipment is useful for country boarder scouting, coast guarding and enermy detection.



    Features

    • Adopt laser illumination system, long lighting distance and large scope realize monitoring at 0Lux total darkness.
    • Adopt long range visible light camera, coordinate with thermal imaging dual-spectrum integrated design, realize day night continuous monitoring
    • Day night low illumination mega pixels color to black camera, realize day night continuous monitoring.
    • Adopt continuous zoom thermal imaging technology, clear image and long detection distance.
    • Passive thermal imaging is concealed and difficult to find
    • Heavy loading high performance U-shape pan tilt, realize no blind angle monitoring in all directions, and high precision positioning.
    • Integrated intelligent temperature control system ensures that the electronic equipment inside the shield works all day round throughout the year
    • External MMA fine-tuning mechanism, laser alignment adjustment can be completed without disassembling.
    • Easy to operate, easy to use and maintain
    • The whole machine is reinforced and designed to resist strong wind, salt spray, high and low temperature resistance, etc.
    • Protection grade IP66.



    Technical Parameters



    Monitoring distance
    Model Eagle102Y
    Thermal camera Human detection 16.4km, vehicle detection 21km;
    Human recognition 7.7km, vehicle recognition 13.5km.
    Day camera 9~10km at daytime
    Auto tracking distance ≥13km (target size 2.3m x 2.3m vehicle)
    General
    Menu English

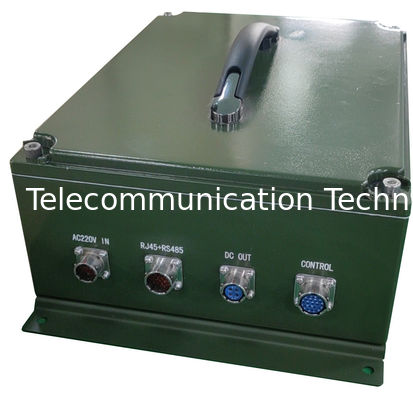

    Power supply interface DC24V, DC48V, DC75V
    Network interface 1×100Base-TX, RJ45 interface
    Video control interface RS485 (Output the azimuth angle, pitch angle and target distance of the target through the RS485 interface, using Pelco D protocol)
    Power supply DC24V to DC24V, DC48V, DC75V
    Work Temperature -25℃~+55℃
    Storage Temperature -40℃~+65℃
    Protection Level IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
    Whole machine weight ≤200kg
    Size 770mm(L)×530mm(W)×875mm(H)
    Optical camera
    Sensor type 1/1.8" Progressive Scan CMOS
    Video resolution 1920x1080, CIF, supporting three video stream
    Lens (focal length) 16.7~1000mm
    Field of View 0.45°~24.9°
    Color mode Integrated ICR dual filter day and night switching, day and night dual mode
    Camera control Automatic gain control, automatic white balance, support for manual and automatic day and night mode conversion
    Back focus fine tuning technology Support, remote debugging
    Noise reduction 3D Digital noise reduction
    Encoding format H.265/H.264/MJPEG
    Video resolution 1080P, CIF, Support three stream
    Video bit rate 32Kbps~16Mbps
    Video frame rate 1~25f/s(50Hz); 1~30f/s(60Hz)
    Subtitle overlay Logo, date, time
    Image adjustment Brightness, contrast, Saturation, sharpness
    Feature Support heartbeat, video cover, password protection
    Support Image stabilization, Defog, auto focus
    Cooled Thermal Camera
    Image sensor Cooled FPA detector
    Max. Resolution 640 × 480
    Spectral range 3.7~4.8μm
    NETD ≤25mK
    Lens (focal length) 35~730mm, 21× optical zoom
    Field of View 0.8°×0.6°~15.6°×12.5°
    Lens control E zoom/focus, auto focus
    Image process DDE, black hot/white hot
    Non-uniformity correction Manual/FFC correction
    Laser Range finder
    Max range distance ≥20 000m (target size 2.3m x 2.3m vehicle)
    Min range distance 300m
    Range deviation ±5m

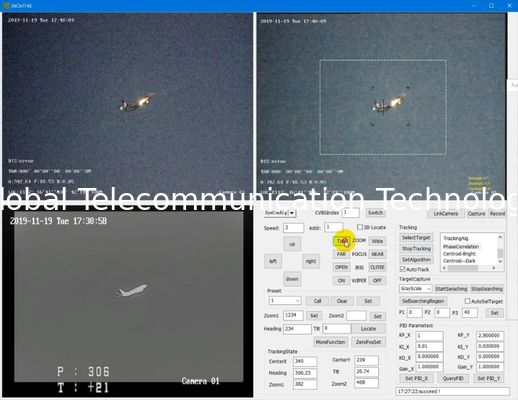

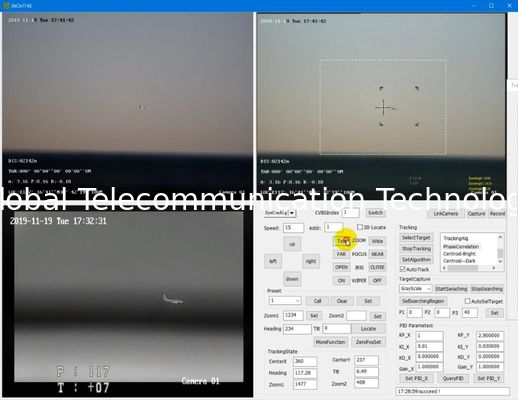

    Auto tracking (built-in tracking module)
    Update rate 25Hz
    Output lag <40ms
    Min target contrast 10%
    Min target size 3x3 pixels
    Max target size 200x100 pixels
    Tracking velocity 4 pixels/frame
    Casing shield
    Material Precision cast aluminum alloy
    Structure Integrated multi-window design
    Window glass Nano optical antireflective glass
    Painting PTA three anti-coating, anti-seawater corrosion

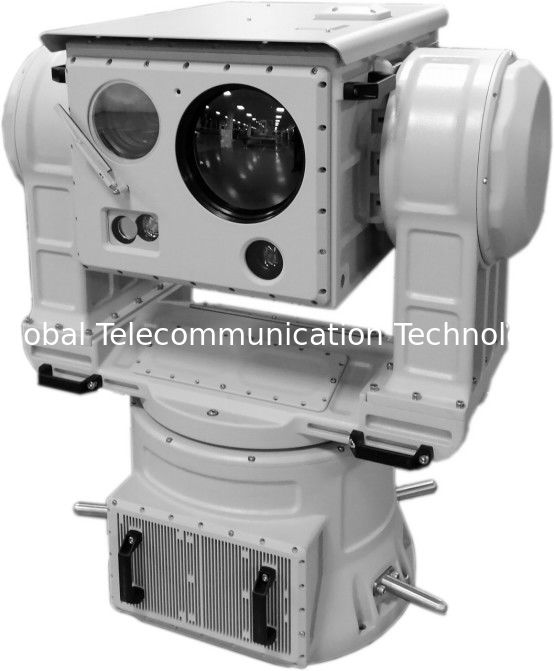

    Pan Tilt Zoom (U shape)
    Movement Range Horizontal 360°continuous rotation, pitching: -45°~+90°
    Pan Speed Configurable, From 0.01°/s to 100°/s,
    Tilt Speed Configurable, From 0.01°/s to 100°/s
    Preset bits 2048
    Preset accuracy ±0.05°
    Patrol Scanning 64 Presets Per Patrol, support apple scanning,
    Stand alone and Slave mode, Auto scanning mode, Sector scanning mode
    Auto line scanning 1 line
    Angle return Support
    Power on/off Support remotely control, Support NB-IoT
    Gyro Stabilized (option) Gyro precision: 1mrad
