| Place of Origin: | China |
| Brand Name: | Global Tech |
| Certification: | ISO9001 |
| Model Number: | GTS-2SMJZ |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | To be negotiated. |
| Packaging Details: | Export Carton |
| Delivery Time: | 7 days after payment clear |
| Payment Terms: | LC/TT/WU |
| Product: | Industrial PC | Temperature: | Max 60 Degree |
|---|---|---|---|
| Emergency: | Mobile Truck |
Main Feature:

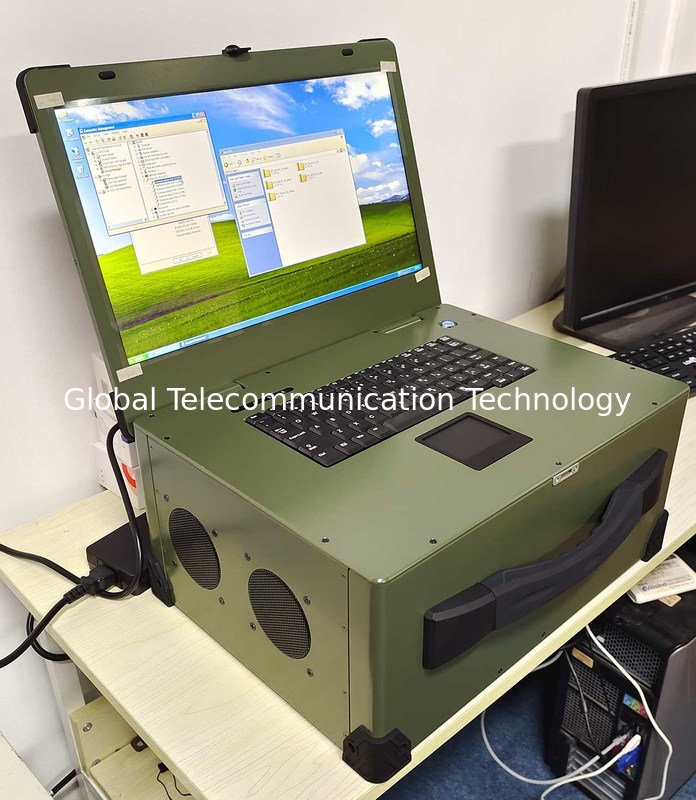

* 15.6' Upward Portable Industrial Computer
* Aluminum-Magnesium Alloy Chassis
* 15.6'TFT LED, with 1920 x 1080 resolution
* Integrated with 88keys keyboard,Touchpad
* Support 2.5' HDD, SSD driver
* Support 4x expansion slots ( 1x PCIE-16X slots /1x PCIE-4X slots /2 x PCI slot )
* WIFI/Touch Optional
* Provide T-SC tactical cable with serial communication.
Introduction
* GTS-MODULEJZ is a Upward industrial portable computer, which offers at most 4 expansion slots and integrates with high brightness LED, Aluminum-Magnesium Alloy chassis.
* It can adapt to any complicated environment and it also offers cost-effectiveness, permanent, multi-functional standard platform for portable computers.
Parameter:
| Material | Industrial dual Al-alloy |
| Motherboard | Supports MINI-ITX Motherboard Installation Space left(Optional) |
|
CPU |
Supports CPU ATOM D2550/N2800/J1900 or Socket LGA1155/1150/G2 988 Intel Core i7/i5/i3 Series(Optional) |
| Chipset | Supports Intel NM10/Q67/Q77/Q87 Chipset (Optional) |
| Display | 15.6″ TFT LED ,300nits(Optional) |
| Resolution | 1920(W) x 1080(H)(Optional) |
| Memory | Supports 2GB/4GB/8GB(Optional) |
| Storage | SATA SSD/HDD(Optional) |
| Speaker | 2*speaker, 2W(Optional) |
|
Expansion slot |
Supports 4 x expansion slot( 1x PCIE-16X slots /1x PCIE-4X slots /2 X PCI slot Optional) |
| Fan | 2* Fan ( optional ) |
| DVD±RW |
Supported (Optional) |
|

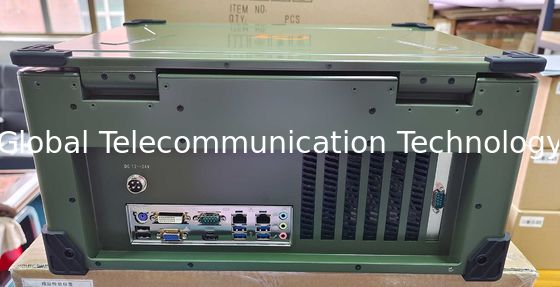

IO |
2 x LAN |
| 2 x RS232 COM | |
| 1 x DVI,1 x VGA | |
| 4 x USB | |
| 1 x Line out , MIC | |
| Hard/Disc driver | 1*2.5”HDD Driver |
| Keyboard | Ultrathin 88keys |
| Touch pad | Supported |
| Touch | Supported (Optional) |
| Battery | Internal Smart Lithium Polymer battery,6000mAH (Optional) |
| In Front Control | 1 x Power button,1 x Lock button |
| Operating System | WES7-WS7P,Win7 pro, Win 8, Linux etc |
| Mechanical Shock | 10G@11ms 30G@11ms |
| Vibration | 0.4Grms(10～500Hz) 1.12Grms(10～500Hz) |
| Power Supply | DC12V or DC19~24V Power input |
| Dimension | 520 x 400 x 214mm |
|
Net Weight |
6Kg |
|
Gross Weight |
12Kg |
| Operating temp | -10°C ~+60°C |
|
Storage temp |
-20°C ~+70°C |
|
Humidity |
10~90% condensing 5~95% non- condensing |
|
Certifications |
CE,FCC |
Standard Accessories as following
Part Number: T-CS Tactical Serial Cable.
Scope of application: The product is suitable for the coal mine mining shaft monitor, the control system makes the low-frequency signal transmission line, Execution standard: Standards implemented: Q/3210HL07-2005.
The cable is ZR-RVV, Anti burn, Anti Dust and survived under rubber wheel. With special pin assignment and cabling for communication of DNT-EB serial server and GTS-2SMJZ rugged PC.
Part Number: T-CS02/03 Rolling rack for T-CS tactical cable.
| Model | T-CS02 | T-CS03 |
| Size | 410*320*450mm | 470*350*515mm |
| Main reel'swidth | Ø320mm | Ø410mm |
| Aixs's diameter | Ø200mm | Ø200mm |
| Main reel'swidth | 155mm | 185mm |
| Packing size | 420*330*480(wooden carton) | 475*365*520mm(wooden carton) |
| Gross weight | 13kg | 16kg |
| Net weight | 9kg | 10.5kg |
| Cable's OD | 3.0mm 4.0mm 5.0mm 6.0mm | 3.0mm 4.0mm 5.0mm 6.0mm |
| 7.0mm 8.0mm 9.0mm 10.0mm | 7.0mm 8.0mm 9.0mm 10.0mm | |
| Capacity | 600M 330M 200M 150M | 1200M 650M 400M 300M |
| 100M 80M 60M 50M | 220M 170M 130M 110M |
Aircraft grade military socket and Plug for serial communication
MS series connectors are designed according to GTMIL-C-5G specification and comply with all its requirements of performance, reliability and interchangeability with products of other manufacturers. These circular connectors, specially designed for military applications, nowadays are widely used also in the industry. A wide range of accessories allows to use these connectors in any environment, while a high number of contact arrangements covers every need of the customer. MS series connectors is the best solution for a high number of applications in various areas
We recommend use with our own tactical signal cable and military plug/socket. All cable are equipped with rolling rack. The rolling rack part number is BX-02 and BX-03.
Housing: Aluminium Alloy
Plating: Olive drab
Electroplating inSulator: PPS plastic/ bakelate/rubber
Contacts Material: Silver Plated over Brass
matting Cyle: 500
Operation temperature: -55 degree to +125 degree
Lusulation Resistance: 5000 MQ at 5000DC working
Voltage: Depends on Insert Configuration Wire
Termination: Solder type
