| Place of Origin: | China |
| Brand Name: | Global Tech |
| Certification: | ISO9001 |
| Model Number: | GTRV-PM9050TD,GTRV-PM9100TD,GTRV-PM9200TD,GTRV-PM9300TD, |
| Minimum Order Quantity: | 2 Unit |
|---|---|
| Price: | To be negotiated. |
| Packaging Details: | Export Carton |
| Delivery Time: | 30 days after payment clear |
| Payment Terms: | LC/TT/WU |
| Product: | TDOA Mesh UAV Datalink | Range: | 50/100/300km(Ari To Ground) |
|---|---|---|---|
| IP Netowrk: | 2*RJ45 Network Port | Serial Port: | 2*RS232 And 1*TTL |
| Transmitting: | HD Video And Drone Control | Power Supply: | DC +9V To +30V |
| Bandwidth: | 4MHz,8MHz,10MHz,14MHz,20MHz Optional | Frequency: | 635-675MHz Or 1410-1470MHz Can Be Customized |
| Real-time Positioning: | TDOA Real-time Trajectory Positioning (non-GPS) | Anti-interference Mode: | Frequency Hopping |
| Number Of Mesh Nodes: | 64 UAV/Drone |
Telemetry mesh datalink with TDOA position system, GTRV-PM9050TD(50km), GTRV-PM9100TD(100km), GTRV-PM9200TD(200km), GTRV-PM9300TD(300km), is a transmission module that supports MESH, point-to-point,point-to-multipoint communication and TDOA real-time positioning. It supports the frequency hopping between 635~675MHz or between 1410~1470MHz, offers maximum 40~47Mbps data bandwidth and smart selection of frequency (the ground and air devices operate in different frequency bands, to realize the anti-interference effects).
Maximum speed supports 1 Mach, strong anti-interference, automatic frequency hopping and MIMO system of dual-send and dual-receive which solves the problem of signal blocking when the drones make turning. At the same time, it supports different bandwidth allocations and long-distance video communication with a high data rate. Because of its moderate size, low latency and low power consumption, it is commonly used in complex environments of medium and long-distance video transmission, data transmission..
As shown below:

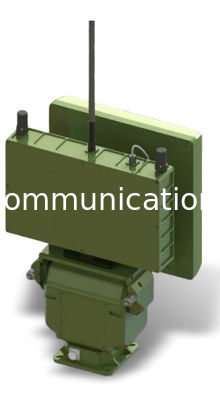

3.1 Military ground station as shown below:
Omnidirectional + directional + automatic tracking
3.2 Omnidirectional ground station as shown below:

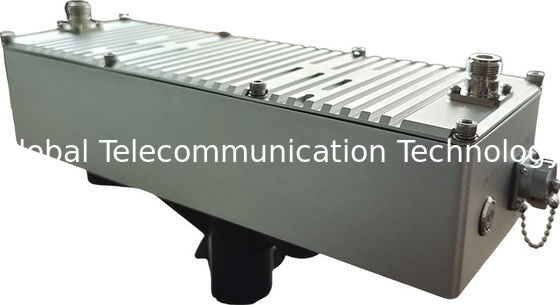

3.3 Directional ground station as shown below:
