| Place of Origin: | China |
| Brand Name: | Fiberhome |
| Certification: | ISO9001 |
| Model Number: | HG6821M |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Packaging Details: | Export Carton |
| Delivery Time: | 30 days(10000 unit) |
| Payment Terms: | 100% TT |
| Supply Ability: | 10000 |
| Ports: | 4GE+1VOIP+2.4/5G Wifi | GPON DR: | Downlink Rate 2.49Gbit/s |
|---|---|---|---|
| GPON UR: | Uplink Rate 1.244Gbit/s | VOIP: | SIP And H.248 |

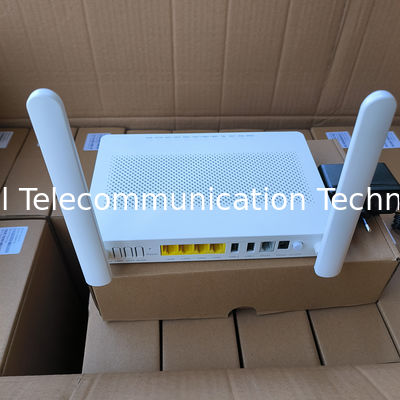

Fiberhome HG6821M ONU is the optical terminal unit with 4GE port 1VOIP port 2USB port and WIFI dual-band 2.4G&5G External antenna Router Modem.
Fiberhome HG6821M ONU is GPON Optical Network Terminal (ONT)and designed for HGU (Home Gateway Unit) in FTTH applications. Fiberhome HG6821M ONU supports L3 function to help subscriber construct the intelligent home network. Fiberhome HG6821M provides a GPON interface to connect OLT with an ODN. It offers a new choice for operators to deliver FTTH access.
| Model | Configuration | Dimension | |||||
| LAN | Telephone | USB | Wifi | PPPoE | Firmware | ||
| HG6821M | 4GE | 1port | 2port | 2.4G/5G | yes | English |
220*160*30mm (D type) |
| Brand | Fiberhome |
| Model | HG6821M |
| Ports | 4GE+1POTS+2USB+Wi-Fi (D type) |
| Dimensions (H x W x D) (mm) | 220 mm x 160 mm x 30 mm (D type) |
| Weight | < 500g |
| Operating temperature | 0°C to +40°C |
| Operating humidity | 5% RH to 95% RH (non-condensing) |
| Power adapter input | 100–240 V AC, 50–60 Hz |
| System power supply | 11–14 V DC, 0.5 A |
| Static power consumption | 7.5 W |
| Max power consumption | 18 W |
| Indicators | POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS |
