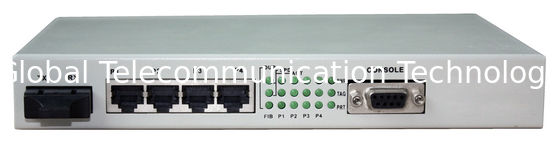

QINQ Management 4 Ports of Ethernet Media Converter GTMC Series

QINQ Management 4 Ports of Ethernet Media Converter GTMC Series

    • QINQ Management 4 Ports of Ethernet Media Converter GTMC Series
    • QINQ Management 4 Ports of Ethernet Media Converter GTMC Series
  • QINQ Management 4 Ports of Ethernet Media Converter GTMC Series

    Product Details:

    Place of Origin: China
    Brand Name: Global Tech
    Certification: ISO9001
    Model Number: GTMC Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Pair
    Price: usd42
    Packaging Details: Standard Carton
    Delivery Time: 7 days after payment clear
    Payment Terms: LC/TT/WU
    Contact Now
    Detailed Product Description

    Global Tech GTMC Series media converter has 5 ports of Fast Ethernet which work as switch. And one port is fiber optical which able to extend to local WAN network. The equipment can be used for large bandwidth accessed by telecom operator, Government, Enterprise and so on. It can also be used for intelligent traffic system, high way video monitoring system, video conference system and security monitoring signal control system. The unit support 802.1Q VLAN tagging, port bandwidth control, flow control, Priority setting and console management.



    Product Feature

    ● Provide Fiber Optical port which is able to optimize topology.

    ● Auto Saving power function. The equipment would automatically turn off idle ports into power save mode.

    ● Each Ethernet support 10/100/1000M auto negotiation and MDIX/MDI auto negotiation

    ● Support VLAN tagging base on local Eth port only

    ● Support 802.1Q VLAN tagging for local and remote side setting.

    ● Support console management with security password login.

    ● Ethernet port support bandwidth control, flow control and Ethernet Priority setting.



     Technical Parameter

    ● Ethernet Port

    ■ Bit Rate: 10M/100M/1000M auto negotiation

    ■ Full/half duplex auto negotiation

    ■ Comply to IEEE802.3

    ■ Connector: RJ45

    ■ AUTO-MDIX

    ● Fiber Optical Port

    ■ Wavelength: 850nm/1310nm multi mode

    1310nm/1550nm Single Mode

    ■ Connector: SC/FC

    ■ TX/RX Power: >-6dBm

    ■ RX Sensitivity: <-36(BER<10-11 )

    ■ Distance: Multimode 2KM

    ■ Single Mode 40 up tp 120 KM.

    ■ Jitter comply to G.742 And G.832

    ● Dimension

    ■ Stand Alone: 210(W)×140(D)×30(H)mm

    ● Working Environment

    ■ Volt: AC 180V ~ 260V;DC –48V;DC +24V

    ■ Power Consumption: ≤5W



    Typical Network Diagram



    QINQ Management 4 Ports of Ethernet Media Converter GTMC Series



    For more technical detail, please visit our website---http://www.cantongt.net
